Proven mechanical flow measurement technology for simple integration and dependable onboard operation
A versatile flow meter for oil, heavy oil and many other oil-like liquids. It is used for efficient consumption measurement of heat burners and various combustion engines. A reliable solution for any application where oil is consumed.
The CONTOIL® oil / fuel flow meter mechanical indicator models type VZO and VZOA:
- A variety of standard models for flow rates between 0.5 and 30,000 liters/h
- Design on delivery or suction side. (with low pressure loss)
- No flow conditioning or straight pipe lengths required
- Versions available for temperatures up to 180 °C and pressures up to PN 40
- Various flange designs available (DIN, JIS, ANSI)

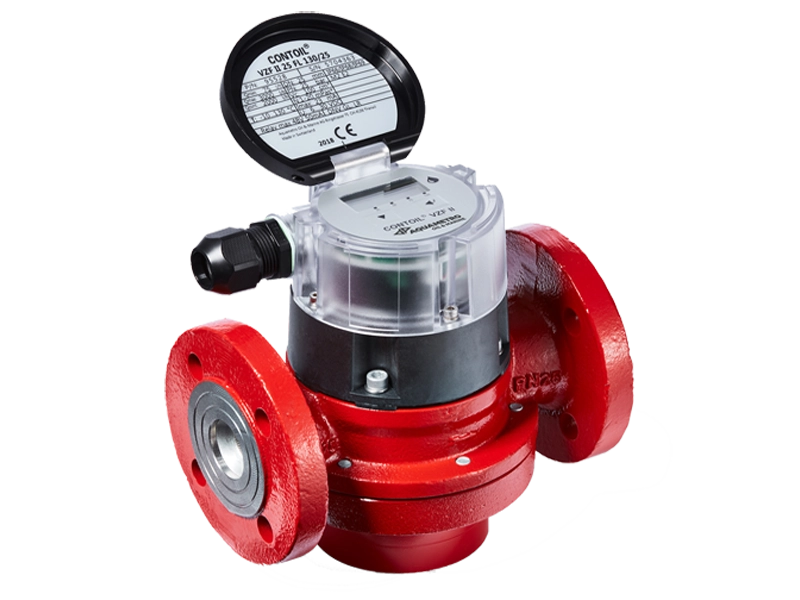

VZF II DN 25 FL

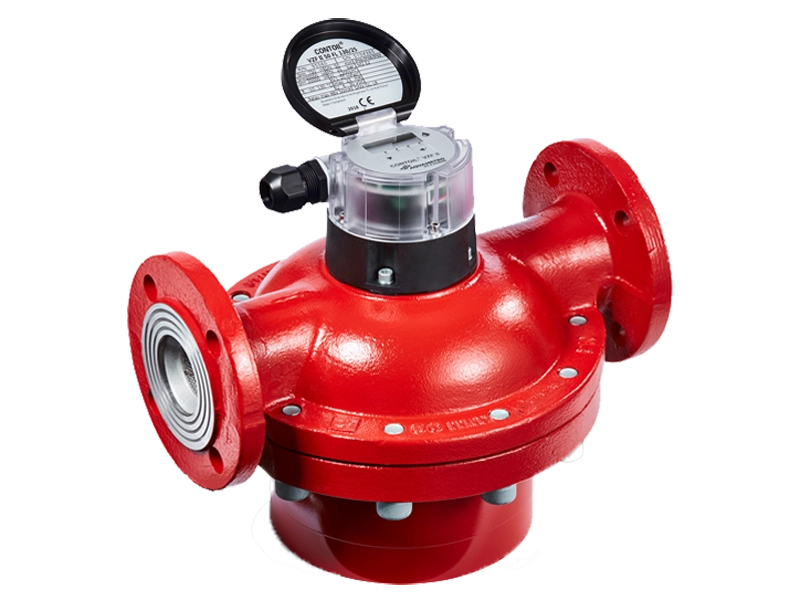

VZF II DN 50 FL
Area of application
Fuel types
Technical specification
Models
- Measuring the fuel oil consumption of oil burners (e.g. in boilers, industrial furnaces, tar processing plants)
- Consumption monitoring and optimization (ships, generators, large vehicles, etc.)
- Flow measurement for mineral oils
- Liquids according to ISO 8217-2012
- Heating oil extra light / light, medium, heavy, fuel mixtures
- Naphtha
- Lubricating fluids (oils)
| OPTIMUM FLOW RANGE | 20…30.000 l/h |
|---|---|
| Temperature | 130/180°C |
| Nominal pressure | PN16, 25, 40 bar |
| Nominal diameter | DN15…DN50 |
| Operating temperature | -25…70°C |
| IP-Protection | IP66, IP68, IP69 |
VZO accuracy 1%: DN 15 to 50 with rotating mechanical meter, non-resettable meter with pulse output options, DN 15 to 40 with threaded or flanged connections, and DN 50 with flanged connections.
VZOA accuracy 0.5%: Higher accuracy range DN 15 to 50 with rotating mechanical meter: Non-resettable meter with pulse output options, DN 15 to 40 with threaded or flanged connections, and DN 50 with flanged connections.
