High-resolution diagnostic videoscope with dual-camera, HD imaging, and Fluke Connect for wireless inspection data.
Basically, in all technical processes wear, fatigue, aging and corrosion severely limit the availability and efficiency of technical equipment. Particularly in the field of engines and drive technology and its components, a review is mandatory.
As an example, the wear of injectors / liners can be exemplified. A change in the mixture preparation by worn injectors leads to a poorer combustion of the fuel.
This results in a high emission load and fuel consumption.
Inspection of injector caps / valves or liners when installed, via the access air purge slots, minimizes maintenance time and saves costs for e.g. Seal kits that do not need to be replaced.
This maintenance can be supported by gauges for visual inspection. By means of these measuring devices, the wear and condition of the components, for example in the engine, are accurately determined. This type of inspection has the advantage that it can be tested by suitable methods and techniques, largely non-destructive and non-destructive
The Fluke DS703 FC is a robust, high-resolution diagnostic videoscope for industrial use with 1280 x 720 resolution and WLAN function. A 17.8 cm (7 inch) capacitive touchscreen ensures accurate diagnostics in hard-to-reach areas. The integrated inspection camera with video recording (720 pixels), adjustable LED lighting and digital zoom ensures high image quality. Up is Up® technology also allows the display screen to be rotated so that the image is displayed regardless of the position of the probe (only for 8.5 mm probe with 1.2 m cable).
The WLAN function makes it possible to wirelessly synchronize the images directly from the videoscope with the Fluke Connect® system and link them to a data set or work order. With the ability to access maintenance reports simultaneously in the field and in the office or other location, you can collaborate with colleagues in real time and make decisions faster. You can also stream live images or videos from your videoscope to a smartphone or PC.

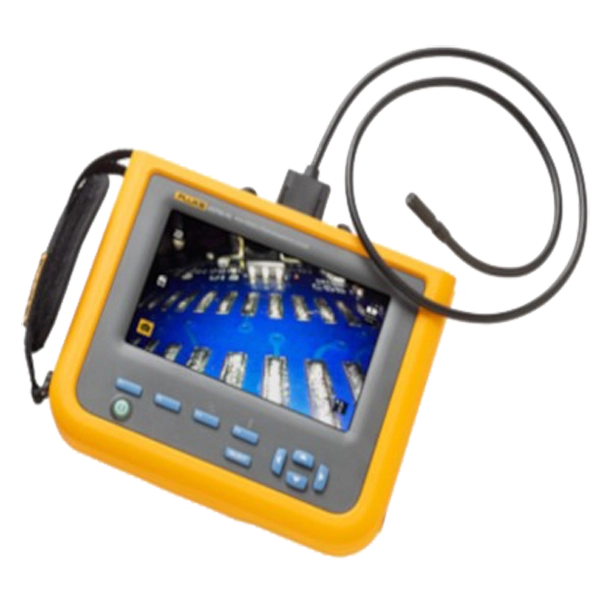

Fluke DS703

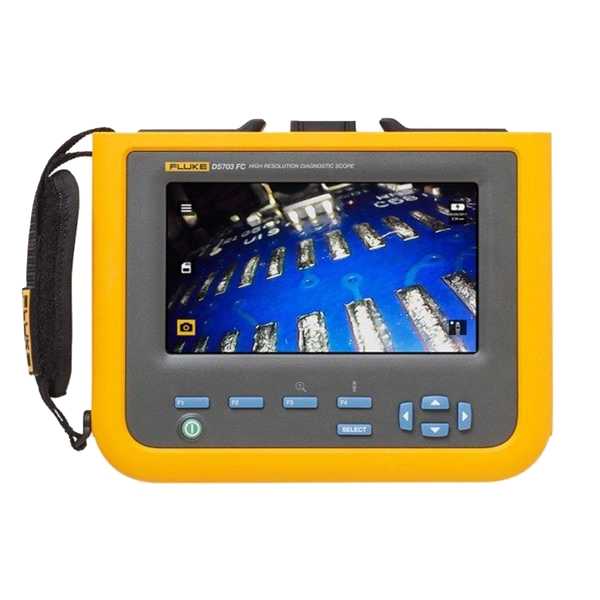

Fluke DS703
Functions and benefits
Scope of supply
- High-resolution probe with dual camera
- Good readability thanks to LCD screen 17.8 cm (7”)
- Up is Up® technology for appropriate image alignment regardless of probe position (only for 8.5 mm probe with 1.2 m cable)
- High processing speeds for smooth, clear and consistent images
- Zoom function from macro to micro
- Adjustable illumination to achieve high image quality
- WLAN function
Scope of delivery: 8.5 mm probe 1.2 m long cable, carrying strap, shoulder strap, USB cable, mains adapter/battery charger, TPAK magnetic holder, case
Diagnostic videoscope, resolution 1200 x 720 (864,000 pixels), 8x digital zoom, probe with IP68, capacitive touchscreen, capacitive touchscreen, video streaming via HDMI and Fluke Connect (WiFi)
