Every ship has a large number of pressure and temperature sensors on board. Regular testing of the accuracy of these sensors is prescribed by the classification societies.
The use of temperature calibrators on board a vessel is crucial to ensure the accuracy and reliability of temperature measurement systems, which in turn is essential for crew safety and efficient operations.
High-accuracy temperature calibration solutions by IKM for laboratory and field applications.

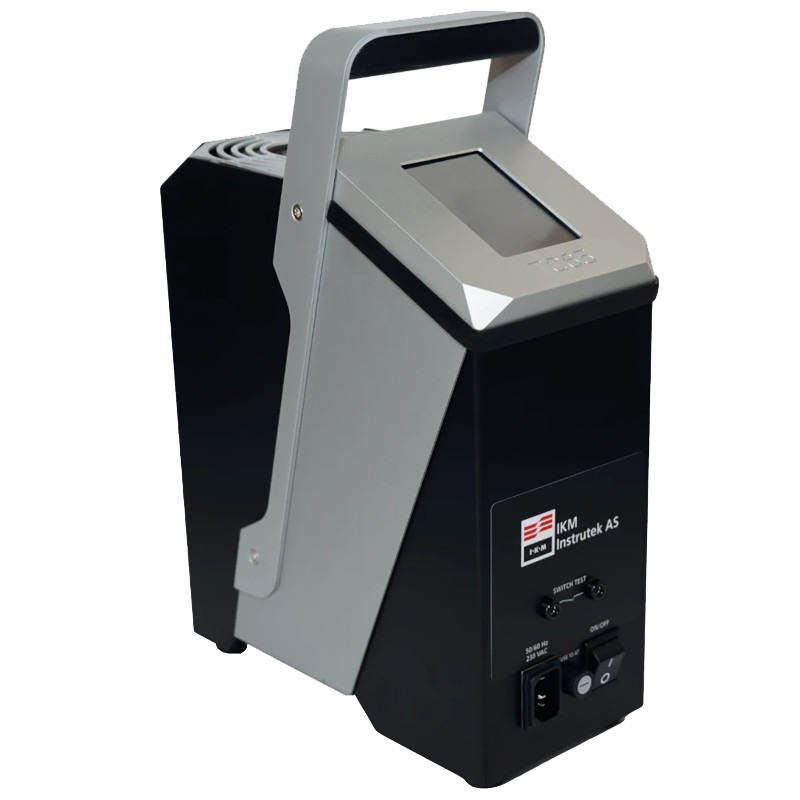

Compact and robust device and for use in marine, industrial and laboratory applications, approved according to DNVGL-CG-0339:2019 (parts thereof). This ensures that you can calibrate a wide range of temperature sensors, thermometers temperature sensors, thermometers and temperature switches/thermostats.
The new calibrator with touchscreen display only needs to be recalibrated every 3 years.
The dry block principle excludes the use of oil or other liquids.
Description
Technical specification
The TC65 temperature calibrators are calibrated with a 6.5 mm insert.
New inserts should be heated to 650°C 3 times before use
tempered 3 times (burn-in) before use. A wide range of optional inserts is available on request.
Standard inserts TC65
– Ø 6.5 mm (1/4″)
– Undrilled
The product has a temperature range of 30 to 650°C, a stability of ±0.1°C, a one-year accuracy of ±1.5°C and a three-year accuracy of ±3.5°C.
If you are looking for other calibrators, e.g. for your pressure sensors, we have interesting sets in our range, just take a look here Marine Test Kit (MTS).
