Every ship has a large number of pressure and temperature sensors on board. Regular testing of the accuracy of these sensors is prescribed by the classification societies.
The use of pressure calibrators on board a ship is crucial to ensure the precision of the pressure measurement systems and thus the safety, efficiency and reliability of the ship’s operation.
High-precision pressure pumps for reliable testing, calibration, and industrial performance.
IKM Instrutek AS supplies a range of hand held pressure pumps for the calibration instruments.
The pumps are durable and suited for the demanding environments on board ships and in the offshore/Industrial fields.
All pumps are available in a kit configuration with case and all necessary fittings, hose and adaptors.
• Multi-function “4 In 1” handpump
• Pneumatic pressures to 60 bar
• Generates vacuum to 95%
• Vacuum priming for hydraulic systems
• Excellent low pressure control
• Adjustable overpressure protection

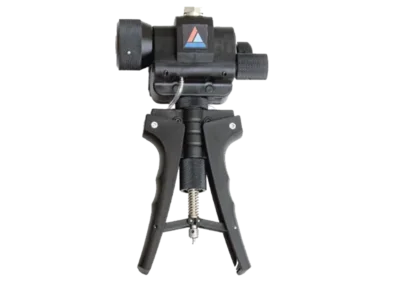

drpv411-pressure-pump-ikm

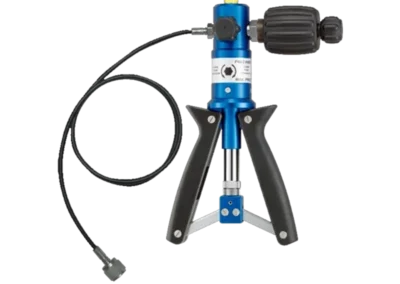

in3ppm60050-pressure-pump-ikm

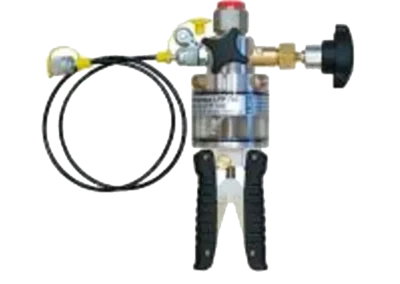

in3ppm10250-pressure-pump-ikm

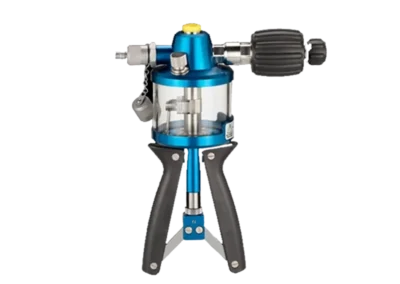

in3ppm70150-pressure-pump-ikm
Description
Technical specification
– Unique vacuum suction function removes trapped air during hydraulic operation
– High pressure is generated with the volume adjuster, eliminating the physical effort associated with traditional hand pumps
Features – The pressure/vacuum changeover valve also provides exceptional fine control of pressure relief in both
pneumatic and hydraulic operation
– Tamper-resistant, adjustable pressure relief valve designed to relieve pressure from 300 to 10,000 psi
– Removable hydraulic reservoir that can be separated from the pump without draining the fluid
– Reservoir safety function with spring-loaded lid
- Venting in the event of an accidental pressure increase above 8 psi
– Hydraulic mode is for operation with distilled water and/or high viscosity mineral oil
– Highly sensitive volume adjuster for hydraulics,
- Pneumatic, vacuum and low pressure operation
– Built-in stroke adjuster controls the pressure/vacuum generated per stroke
– 240° swivel head for optimum view of reference
Displays
– Internal moving parts are PTFE anodized for reduced friction and wear
– Ergonomic, robust and lightweight design with comfortable handle
Pressure ranges
Pressure pump, Pneumatic -0,95 to 60 bar
Handheld pump, -0,95 to 60 bar
Pressure pump hydraulic, 0 to 700 bar
Pressure Pump hydraulic, 0-1000 bar
Hydraulic media
Designed for operation with distilled water (no alcohol),
Mineral oil with a content of 40% by weight.
For combined hydraulic and pneumatic operations
it is recommended to use distilled water for hydraulic operation.
Use distilled water for hydraulic operation.
Materials
Stainless steel, anodized aluminium, nitrile rubber, acrylic,
PTFE, polyurethane, Delrin and nylon
Pressure connections
1/4 inch female NPT thread
