The Multigauge 6000 UT Drone Thickness Gauge has been specifically designed to mount onto drones or unmanned aerial vehicles (UAV). The measurements are transmitted wirelessly in real time to a PC or laptop up to 500 metres away. The lightweight drone thickness gauge is also supplied with a plastic probe to further reduce weight.
The Tritex Multigauge 6000 Drone Thickness Gauge is the first commercially available dedicated thickness gauge for mounting onto a drone, developed over many years with lots of successful installations. It has been designed for easy integration, wirelessly transmitting accurate measurements, not including the coatings, up to 500m away. These are displayed on a dedicated software, called Communicator, where readings can be stored in a grid or string format, which is entirely customizable. The gauge is supplied with a lightweight plastic probe and optional probe holder and wet gel dispenser, controlled wirelessly through Communicator software, to accurately apply gel to the face of the probe when required.

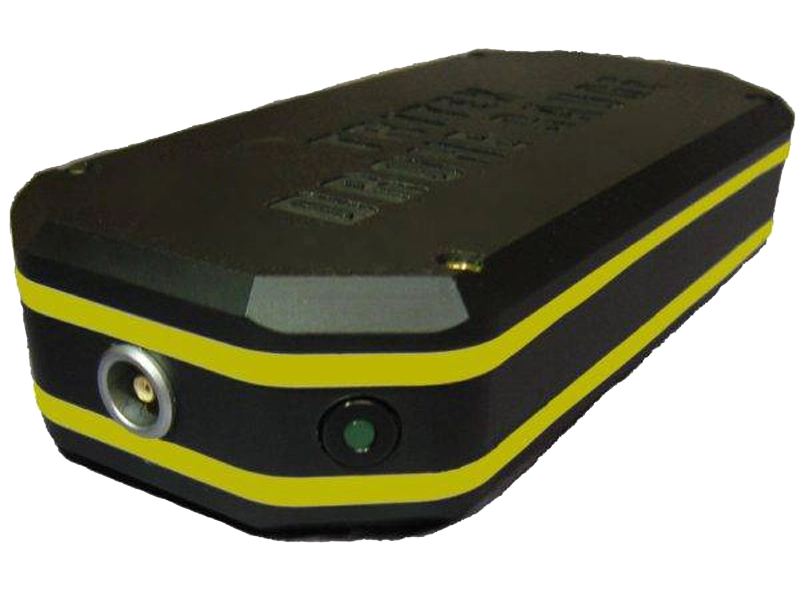

Multigauge 6000 Drone

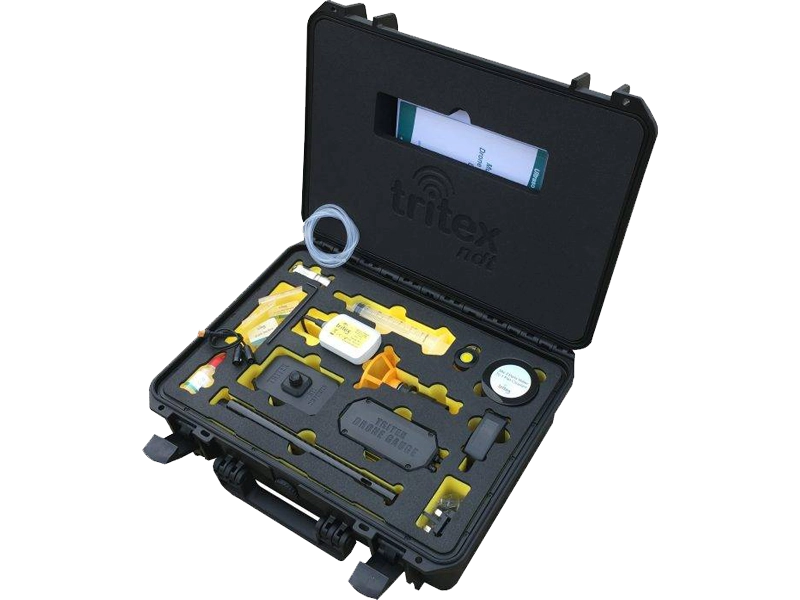

Multigauge 6000 Drone Gauge Kit

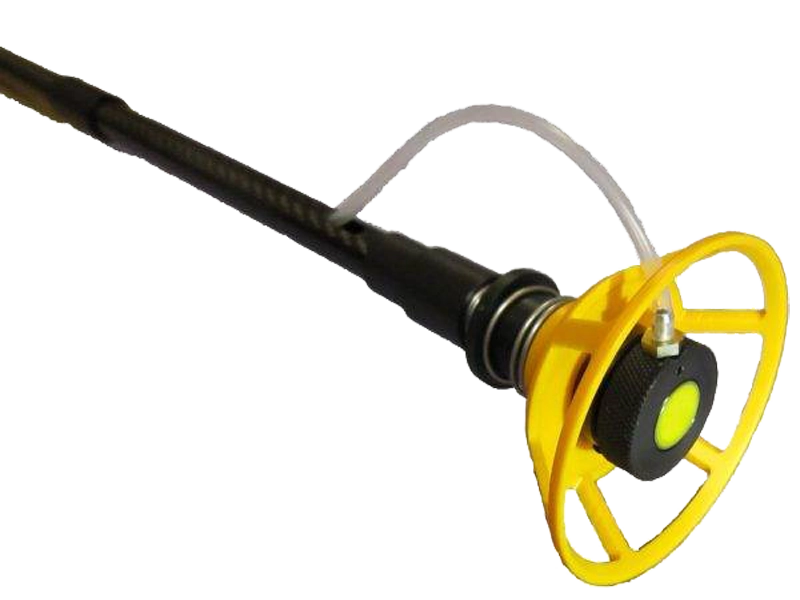

Probe Holder With Gel Attachment

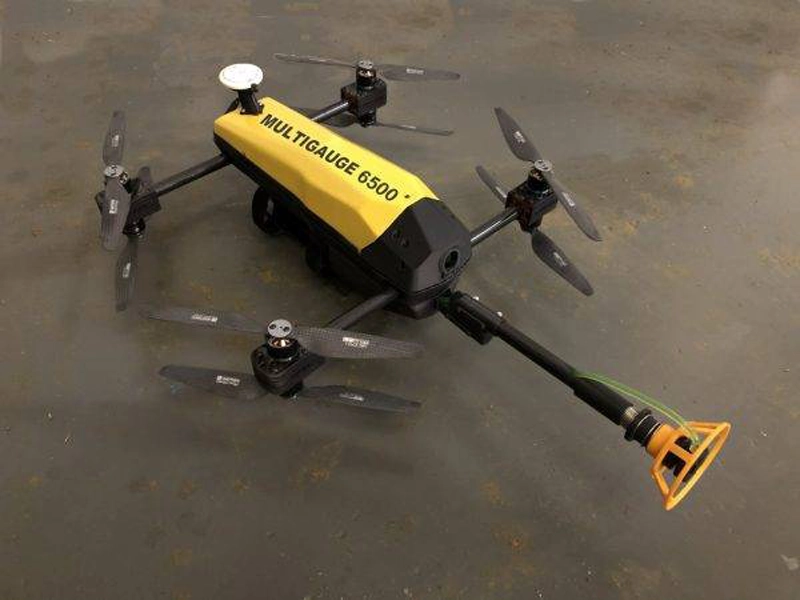

Multigauge 6500
Operation
Features
Product range
Technical specification
Multiple Echo technology ignores coatings up to 6mm thick, therefore just the metal substrate is measured. All probes have Intelligent Probe Recognition (IPR), which automatically adjusts settings in the gauge at the same time as transmitting recognition data – the result is a perfectly matched probe and gauge for enhanced performance. Additionally, the Automatic Measurement Verification System (AMVS) ensures only true measurements are displayed, even on the most heavily corroded metals.
- Easily mounts onto most drone and UAV types.
- Ignores coatings up to 6 mm thick using Multiple Echo. Coating Plus+ ignores coatings up to 20 mm.
- Automatic Measurement Verification System (AMVS).
- Wirelessly transmits measurements up to 500m.
- Used with our Gel Dispenser which is wirelessly controlled from Communicator software
- Lightweight.
- No zeroing required.
- 10Vdc – 32Vdc input supply.
- Lightweight single crystal soft faced probe. Can be used in any orientation.
- Easy calibration.
- Intelligent Probe Recognition (IPR).
- Echo strength indicator.
- 3 year warranty.
- Areas of application: Drone
Scope of delivery (all in one case) Model 6000:
- Multigauge 6000 UT Drone gauge
- Probe
- Probe lead
- Spare membranes
- membrane oil ultrasonic gel
- 15mm test block
- membranen key
- power supply
- power – XT 30 connector lead
- manual
- calibration certificate
- carry case
Options:
- Drone Thickness Gauge Probe Holder
- Gel Dispenser
| Sound Velocity Range: | From 1000 m/s to 8000 m/s (0.0394 in/µs to 0.3150 in/µs) |
| Probes: | Single crystal soft faced – 2.25 MHz, 3.5 MHz & 5 MHz |
| Measurement Range: | 1 – 250 mm (0.04” – 10”) depending on probe used |
| Probe Sizes: | 13 mm (0.5”) |
| Measurement Mode: | Multiple Echo |
| Resolution: | 0.1 mm (0.005”) or 0.05 mm (0.002”) |
| Accuracy: | ± 0.1 mm (0.005”) or ± 0.05 mm (0.002”) |
| Display: | Communicator software on PC or laptop |
| Data Transmission: | Wireless RF, 2.4 GHz. Internationally Acceptable. |
| Coatings Range: | Up to 6mm (Standard Mode)*; up to 20mm (Coating Plus+)* |
| Power Supply: | 10Vdc – 32Vdc. Polarity Protection |
| Wireless Transmission Range: | Up to 500 Metres |
| Gauge Dimensions (Including Connectors and Switches): | 139 mm x 62 mm x 33 mm (5.47” X 2.44” X 1.30”) |
| Gauge Weight: | 150 g (5.3 ounces) |
| Probe Weight: | 50 g (1.8 ounces) (excluding probe cable) |
| Environmental: | IP65. RoHS and WEEE compliant |
| Operating Temp: | -10°C to +50°C (14°F to 122°F) |
| Storage Temp: | -10°C to +60°C (14°F to 140°F) |
