The Multigauge 5650 Surveyor Thickness Gauge is a simple, robust ultrasonic thickness gauge designed specifically for ship and small craft surveyors, but can also be used in applications where different measurement modes are required. The user has a choice of Multiple Echo, Echo to Echo or Single Echo to cover all requirements. The gauge can be used for metal,
GRP or plastic measurement and it automatically switches modes and settings depending on the type of probe fitted. The easy to use keypad allows operator interface whilst the bright LCD display can be used in all light conditions

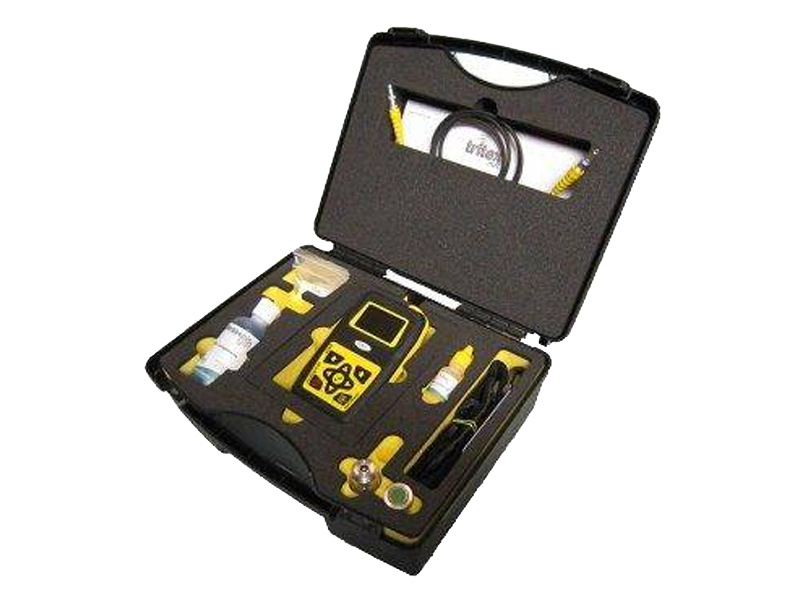

MG5650 Kit

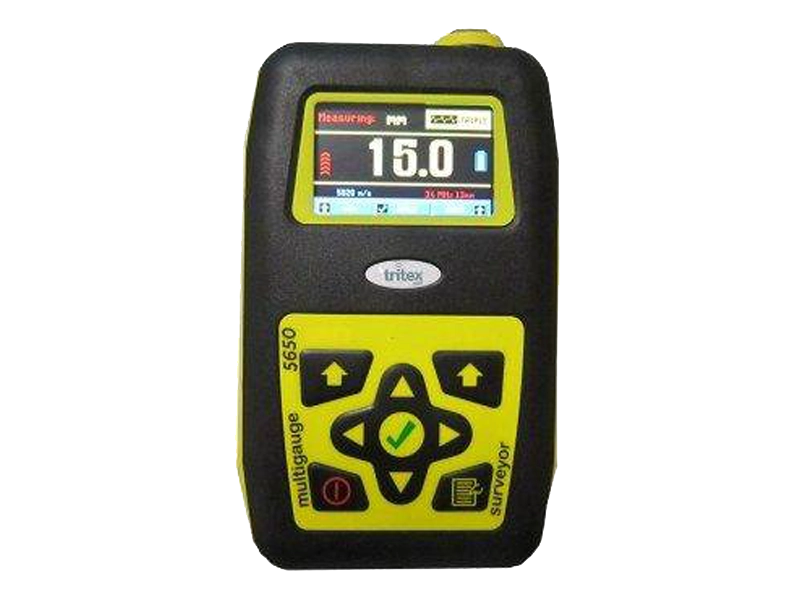

MG5650 Surveyor

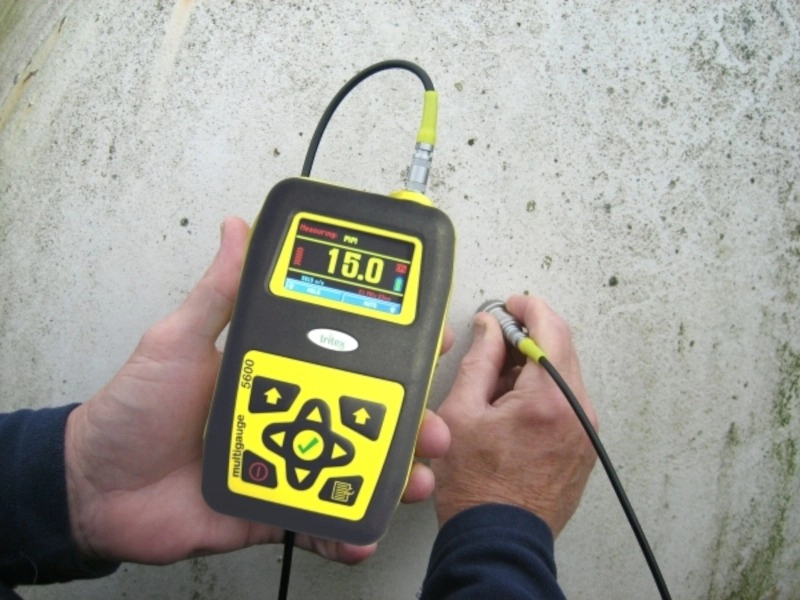

5600 MK2 measuring tank

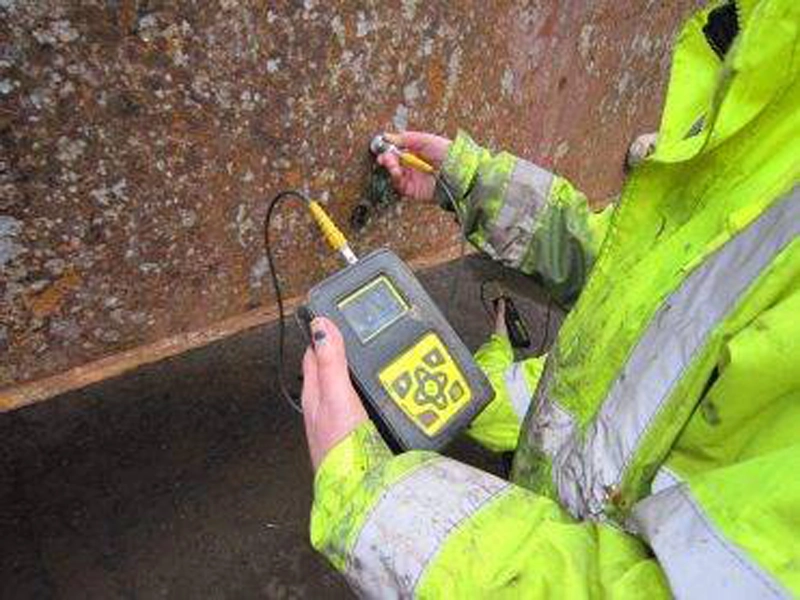

5600 MK2 measuring
Simple operation
Benefits
Product range
Technical specification
All probes have Intelligent Probe Recognition (IPR), which automatically adjusts settings in the gauge at the same time as transmitting recognition data – the result is a perfectly matched probe and gauge for enhanced performance. Additionally, the Automatic Measurement Verification System (AMVS) used with multiple echo ensures only true measurements are displayed, even on the most heavily corroded metals.
- Ignores coatings up to 6 mm thick using Multiple Echo. Coating Plus+ ignores coatings up to 20 mm.
- Single crystal soft faced probes protected by a membrane and single crystal hard faced probes for linear accuracy.
- Automatic Measurement Verification System (AMVS) in multiple echo mode.
- Echo – Echo mode for enhanced performance.
- Inspect GRP for osmosis.
- Large colour LCD display giving user information.
- No zeroing required.
- Easy calibration with menu driven buttons.
- Intelligent Probe Recognition (IPR).
- Echo strength indicator.
Scope of delivery (everything in a case)
- Hand-held device
- Measuring cable 1.5m
- 15mm stainless steel calibration block
- Spare membranes and key
- Coupler gel
- Membrane oil
- batteries
- Operating instructions (uk)
- Calibration certificate
- Sensor (frequency and diameter freely selectable)
- Belt clip
- Device case
We offer an optional leather case to protect the measuring device.
| Sound Velocity Range: | From 1000 m/s to 8000 m/s (0.0394 in/µs to 0.3150 in/µs) |
| Probes: | Single crystal soft faced – 2.25 MHz, 3.5 MHz & 5 MHz / Single crystal hard faced – 1 MHz |
| Measurement Range: | Steel: 1 – 300 mm (0.04” – 11.8”) depending on probe type. GRP: 2 – 12 mm (0.080” to 0.5”) depending on GRP |
| Probe Sizes: | 6 mm (0.25”), 13 mm (0.5”) & 19 mm (0.75”) |
| Measurement Mode: | Multiple Echo / Echo – Echo / Single Echo |
| Resolution: | 0.1 mm (0.005”) or 0.05 mm (0.002”) |
| Accuracy: | ± 0.1 mm (0.005”) or ± 0.05 mm (0.002”) |
| Display: | Colour LCD |
| Coatings Range: | Up to 6mm (Standard Mode)*; up to 20mm (Coating Plus+)* |
| Batteries: | 3 x disposable ‘AA’ alkaline batteries or rechargeable NiMH / NiCD |
| Battery Life: | Up to 50 hours continuous use using alkaline batteries |
| Gauge Dimensions: | 147 mm x 90 mm x 28 mm (5.75” X 3.5” X 1”) |
| Gauge Weight: | 325 g (11.5 ounces) including batteries |
| Environmental: | Case rated to IP65, RoHS and WEEE compliant |
| Operating Temp: | -10°C to +50°C (14°F to 122°F) |
| Storage Temp: | -10°C to +60°C (14°F to 140°F) |
