The Multigauge 5350 GRP Thickness Meter is a simple, robust ultrasonic thickness meter designed to check the condition of Glass Reinforced Plastic (GRP) or Engineering Plastics. It can also be used on uncoated metal. The easy to use keypad allows operator interface, whilst the bright colour LCD display can be used in all light conditions. The moulded soft rubber surround feels comfortable, looks good and provides extra protection against knocks and scrapes. All probes have Intelligent Probe Recognition (IPR), which automatically adjusts settings in the gauge at the same time as transmitting recognition data – the result is a perfectly matched probe and gauge for enhanced performance.
Measurements can be logged using a grid or string format. The gauge will store up to 895 files, each containing 100 records. Each record can store either a string of 250 or grid of 16 x 16 measurements. The simple, easy to use menu guides the user through intuitive setup procedures.
The GRP thickness meter uses wireless technology to transmit the measurements to the PC where dedicated Communicator software allows the analysis of the results or easy production of templates using wizards. Measurements are stored in a .txt format so that they can be opened in other applications.
Measurements can also be displayed remotely on a PC up to 1000 metres away
Multigauge 5300 Kit
Multigauge 5300 GRP

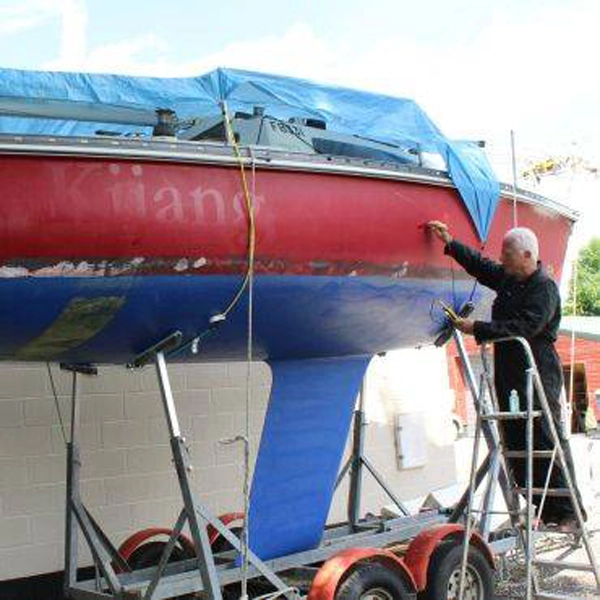

MG5300 GRP
MG5300 GRP
Features
Product range
Technical specification
- Measures GRP or all types of engineering plastic.
- Large colour LCD display giving user information.
- No zeroing required.
- Single crystal hard faced probe.
- Wireless data transmission.
- Displays measurements on a PC up to 1000m away.
- Easy calibration with menu driven buttons.
- Intelligent Probe Recognition (IPR).
- Echo strength indicator.
- Datalogging version with wireless data transmission.
- 3 year warranty.
Scope of delivery (everything in a case) Model 5350:
- Hand-held device
- Measuring cable 1.5m
- 15mm stainless steel calibration block
- Spare membranes and spanner
- Coupler gel
- Membrane oil
- batteries
- Operating instructions (uk)
- Calibration certificate
- Sensor 1Mhz, measuring range: 2-300mm
- Belt clip
- Device case
- Software incl. WLAN stick (model 5350 only)
We offer an optional leather case to protect the measuring device.
| Sound Velocity Range: | From 1000 m/s to 8000 m/s (0.0394 in/µs to 0.3150 in/µs) |
| Probe: | Single crystal hard faced – 1 MHz |
| Measurement Range: | Engineering Plastic: 2 – 300 mm (0.08” – 11.8”) depending on material. GRP: 2 – 12 mm (0.080” to 0.5”) depending on GRP. |
| Probe Sizes: | 19 mm (0.75”) |
| Measurement Mode: | Single Echo / Echo – Echo |
| Resolution: | 0.1 mm (0.005”) |
| Accuracy: | ± 0.1 mm (0.005”) |
| Display: | Colour LCD |
| Storage Capacity: | 32 Mb |
| Data Transmission: | Wireless RF |
| Batteries: | 3 x disposable ‘AA’ alkaline batteries or rechargeable NiMH / NiCD |
| Battery Life: | Up to 50 hours continuous use using alkaline batteries |
| Gauge Dimensions: | 147 mm x 90 mm x 28 mm (5.75” X 3.5” X 1”) |
| Gauge Weight: | 325 g (11.5 ounces) including batteries |
| Environmental: | Case rated to IP65, RoHS and WEEE compliant |
| Operating Temp: | -10°C to +50°C (14°F to 122°F) |
| Storage Temp: | -10°C to +60°C (14°F to 140°F) |
