The Multigauge 5300 GRP thickness gauge is a simple, robust ultrasonic thickness gauge designed to check the condition of Glass Reinforced Plastic (GRP) or Engineering Plastics. It can also be used on uncoated metal. The easy to use keypad allows operator interface, whilst the bright colour LCD display can be used in all light conditions. The moulded soft rubber surround feels comfortable, looks good and provides extra protection against knocks and scrapes. All probes have Intelligent Probe Recognition (IPR), which automatically adjusts settings in the gauge at the same time as transmitting recognition data – the result is a perfectly matched probe and gauge for enhanced performance.

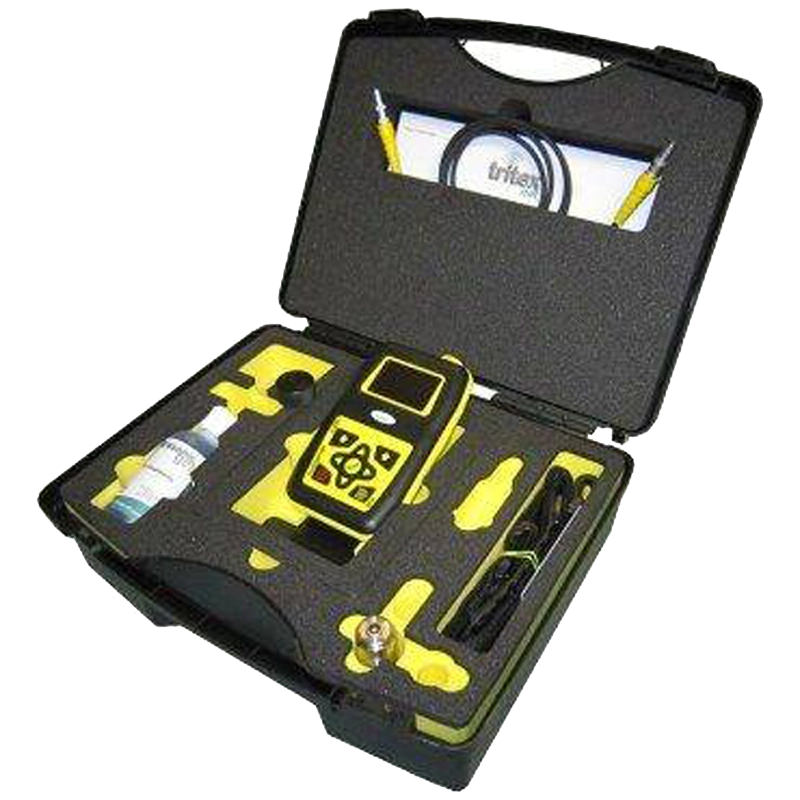

Multigauge 5300 Kit

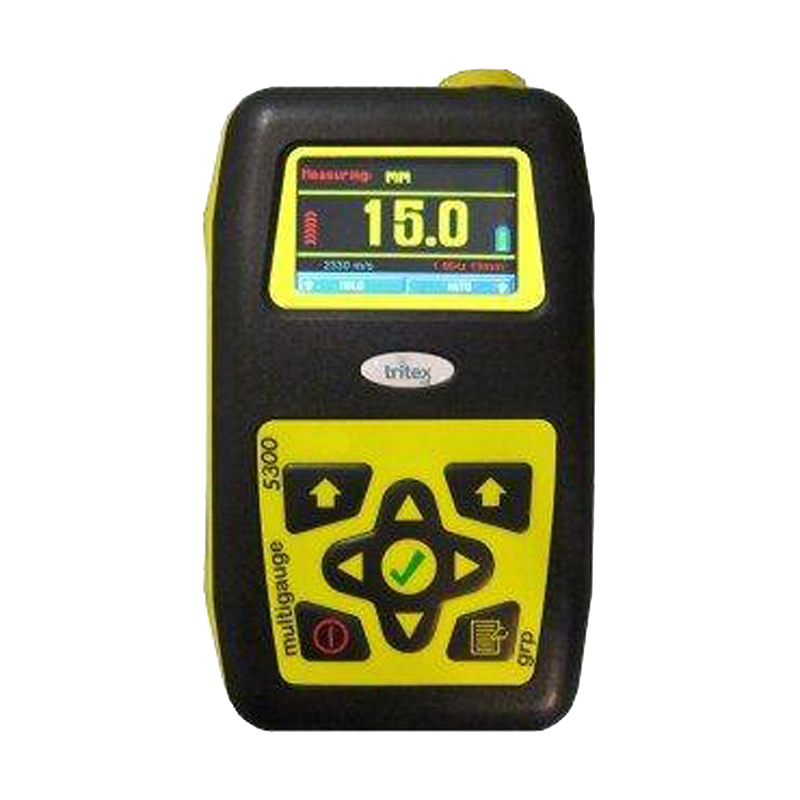

Multigauge 5300 GRP

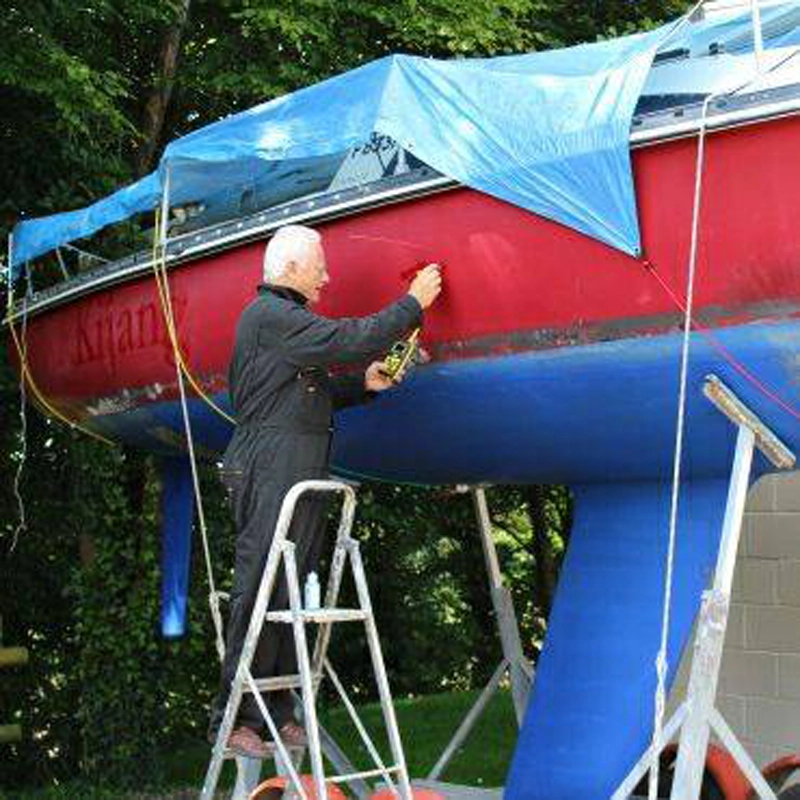

MG5300 GRP

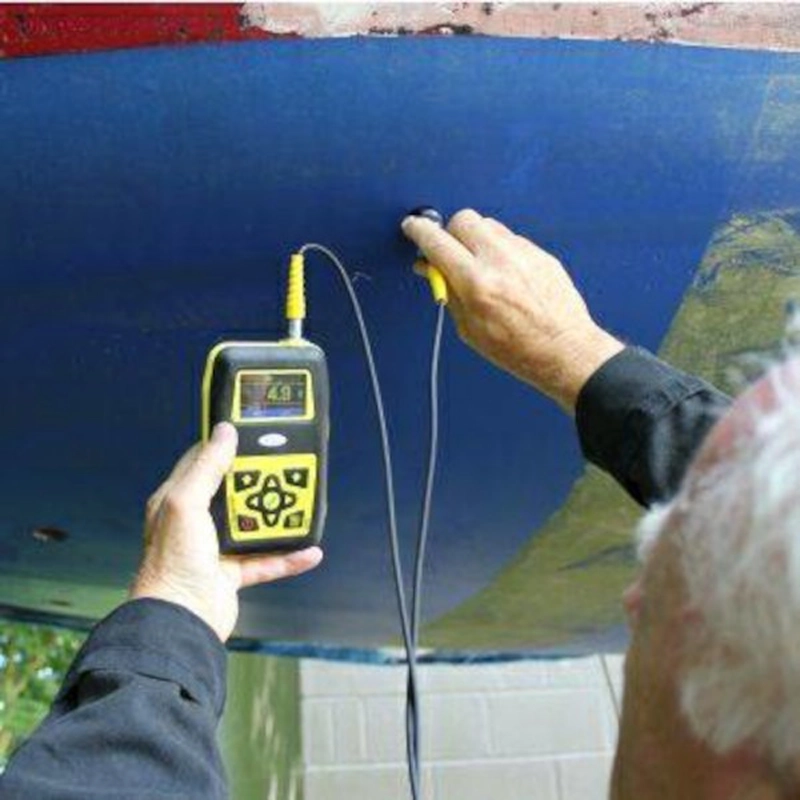

MG5300 GRP
Features
Product range
Technical specification
- Measures GRP or all types of engineering plastic.
- Large colour LCD display giving user information.
- No zeroing required.
- Single crystal hard faced probe.
- Easy calibration with menu driven buttons.
- Intelligent Probe Recognition (IPR).
- Echo strength indicator.
- Datalogging version with wireless data transmission.
- 3 year warranty.
- Free calibration for the life of the gauge.
Scope of delivery (all in one case) Model 5300:
- Hand-held unit
- Measuring cable 1,5m
- 15mm stainless steel calibration block
- Spare membrane and key
- Coupling gel
- Membrane oil
- Batteries
- Instruction manual (uk)
- Calibration certificate
- Sensor 1Mhz, measuring range: 2-300mm
- Belt clip
- Instrument case
Optionally we offer a leather case to protect the measuring device.
| Sound Velocity Range: | From 1000 m/s to 8000 m/s (0.0394 in/µs to 0.3150 in/µs) |
| Probes: | Single crystal hard faced – 1 MHz |
| Measurement Range: | Engineering Plastic: 2 – 300 mm (0.08” – 11.8”) depending on material. GRP: 2 – 12 mm (0.080” to 0.5”) depending on GRP. |
| Probe Sizes: | 19 mm (0.75”) |
| Measurement Mode: | Single Echo / Echo – Echo |
| Resolution: | 0.1 mm (0.005”) |
| Accuracy: | ± 0.1 mm (0.005”) |
| Display: | Colour LCD |
| Batteries: | 3 x disposable ‘AA’ alkaline batteries or rechargeable NiMH / NiCD |
| Battery Life: | Up to 50 hours continuous use using alkaline batteries |
| Gauge Dimensions: | 147 mm x 90 mm x 28 mm (5.75” X 3.5” X 1”) |
| Gauge Weight: | 325 g (11.5 ounces) including batteries |
| Environmental: | Case rated to IP65, RoHS and WEEE compliant |
| Operating Temp: | -10°C to +50°C (14°F to 122°F) |
| Storage Temp: | -10°C to +60°C (14°F to 140°F) |
