Every ship has a large number of pressure and temperature sensors on board. Regular testing of the accuracy of these sensors is prescribed by the classification societies.
The calibrators should be easy to use, robust and reliable. The accuracy of the calibrators must also be documented by certificates.
IKM calibration sets for pressure and temperature – precise, reliable, with up to 3 years calibration validity.

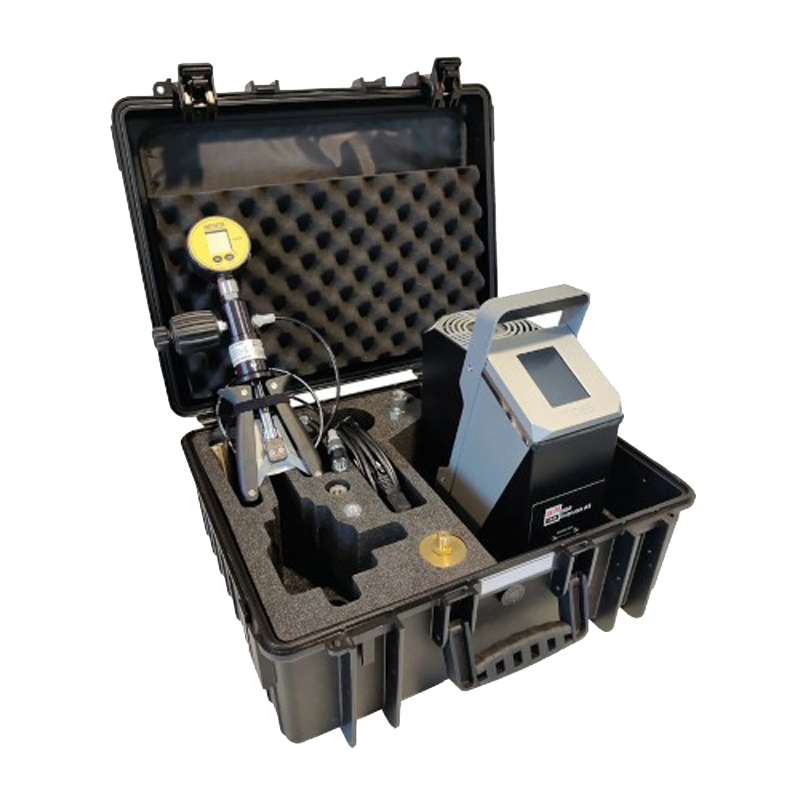

Our mini test kit meets most requirements on board merchant ships as well as naval vessels and mobile offshore drilling units in terms of pressure and temperature. Our mini system can be easily adapted to the specific requirements you have on certain vessels for pressure and temperature. All test kits are supplied complete with the necessary accessories.
On board you need all the help you can get.
We offer you a complete family of tools for the maintenance of your control instruments.
A ship is often like a process plant: you never know what’s going to go wrong. Or worse, where. If you’re not sure where the problem lies, our test equipment is the best help for troubleshooting and calibration.
Scope of delivery
Temperature calibrator TC65
Environmental and regulatory requirements are important components of QA systems that must be implemented on board.
must be implemented on board. Our portable temperature calibrators cover temperatures up to 650°C. Removable insert for more flexibility.
– Temperature range 30-650°C
– Accuracy 1 year ±1.5°C
– Accuracy 3 years ±3.5°C
Pressure calibrator 60 bar
This pressure calibrator has been introduced to the already extensive range of pressure calibration products and can be used for calibration testing of pressure transmitters, pressure switches, indicators, recorders and regulators.
– Range -0.8 to 60 bar
– Fine adjustment
– Accuracy 1 year ±0.2% FS
– Accuracy 3 years ±0.5% FS
Adapter sets
The set is supplied with adapters for BSP and NPT.
– Adapter set 1 contains four adapters from BSP to NTP
– Adapter set 2 contains three BSP to BSP adapters
Optional:
– Marine adapter, 40mm test flange
– Adapter kit 3, M16x2 F to 1/4″ BSP M quick connector
