Every ship has a large number of pressure and temperature sensors on board. Regular testing of the accuracy of these sensors is prescribed by the classification societies.
The calibrators should be easy to use, robust and reliable. The accuracy of the calibrators must also be documented by certificates.
All-in-one calibration with SIKA: pressure and temperature solutions for consistent, dependable results.
The Marine Calibration Kit (MCK) enables the user to perform temperature and pressure tests, measurements and calibrations for all types of instruments. The Marine Calibration Kit is very popular in the market due to its composition and handy case. It contains a complete pressure test set as well as a temperature test including all necessary accessories and certificates according to IMO regulations. The most requested and applicable marine calibration set is the TXM MCK 60/650 .
Simple operation
Product range
The all-round carefree case with all the advantages of the described pressure calibrators and temperature calibrators.
Pressure calibrator:
If the device to be tested and a sufficiently accurate reference measuring device are connected to the pressure pump, the same pressure acts on both measuring devices when the pump is actuated. By comparing the two measured values at any pressure value, the accuracy or adjustment of the test item can be checked. The hand test pump has a fine adjustment valve for exact approach of the measuring points.
Temperature calibrator:
The temperature calibrators work with temperature-controlled metal blocks and interchangeable insert sleeves.
The calibration temperature can be easily set using buttons on the controller and the temperature is adjusted in the shortest possible time. The actual and target temperatures of the heating block are shown simultaneously on a large 4-digit LED display. This practically eliminates reading errors.
Thermometers of different diameters can be adapted to the calibrator using appropriately drilled insert sleeves.
The marine calibration set can be assembled according to your requirements, the following is an example:

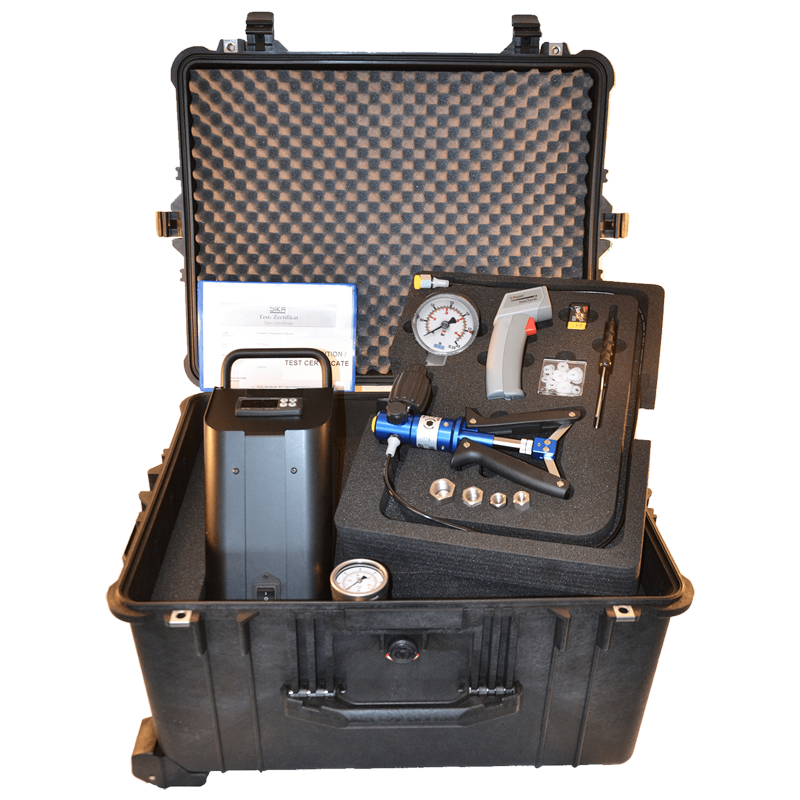

Article description: TXM 60/650 Marine calibration set
Item number: 1000090010488
Measuring range pressure: -1/60 bar
Measuring range temperature: 650°C
Scope of delivery:
Temperature calibrator 230V 50 / 60Hz
Pressure tester (pneumatic) TP 60 bar
Analog pressure gauge -1 to 60 bar
Infrared thermometer
Test certificate for the temperature calibrator
Test certificate for analog pressure gauge
Robust Peli case
Seals
Accessories
adapter
Overview of all systems
TYP Druck / Temperatur
MCK 60/200 -1…60 bar / 200°C
MCK 60/650 -1…60 bar / 650°C
MCK 300/650 0…300 bar / 650°C
MCK 700/650 0…700 bar / 650°C
MCK 700/850 0…700 bar / 850°C
