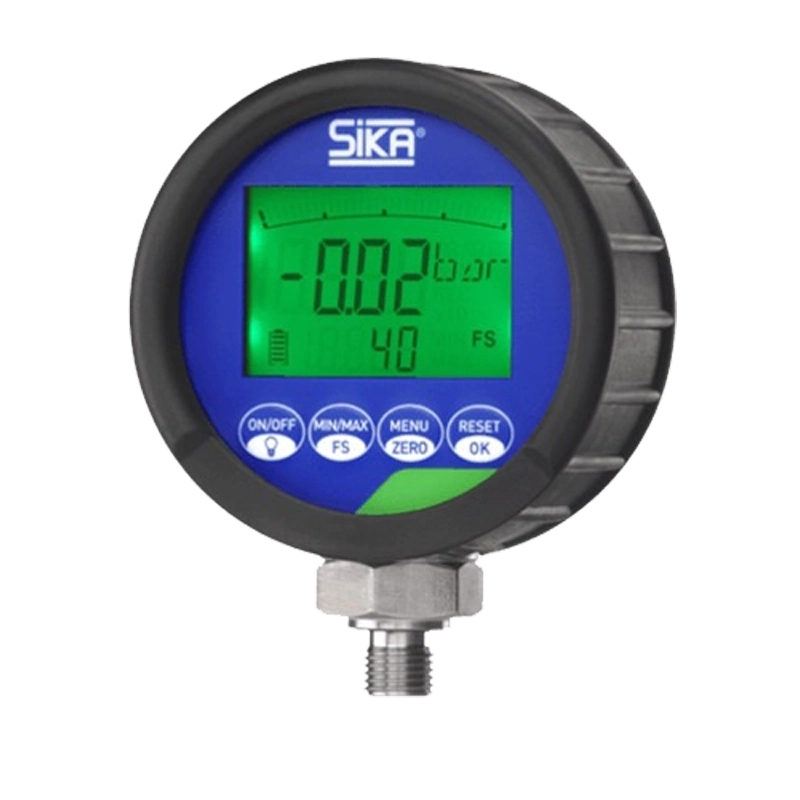

SIKA TANTUM series digital manometers are ideally suited for both stationary and mobile pressure measurement and display. Their use as a pressure reference enables the easy checking, adjustment, and calibration of other pressure measuring devices directly on-site.
• Continuous or temporary monitoring of a wide range of system pressures
• Monitoring the contamination level of filters in ventilation or air conditioning systems
• Recording pressure drops to identify leaks during tightness testing
• Measuring barometric air pressure to determine weather conditions
• Reference manometer for calibration tasks
Benefit
Product range
• Suitable for short-term analysis and testing purposes as well as continuous measurement operation
• 12 pressure ranges, 3 accuracy classes
• 6 switchable pressure units
-> bar / mbar, kPa / MPa, PSI, kg/cm², mH2O, inH2O
• Measurement rate 10 ms captures even the smallest pressure spikes
• Powered by 2 x 1.5 V AA batteries
->1,500-hour battery life
• Backlit digital display, Actual value digit height 15 mm, Bar graph with drag indicator function, Display rotatable 270° axially
-> Easy to read from a distance
• Oil- and dirt-resistant surface
• IP67 protection rating
• Vibration-resistant (5g up to 500 Hz)
• Shock-resistant (25g for 11 ms)
Type E2:
Pressure range: -1….1000bar (depending on configuration)
Resolution: 1mbar…100mbar (depending on configuration)
Accuracy (full scale) 0.5%
Type D2:
Pressure range: -1….1000bar (depending on configuration)
Resolution: 1mbar…100mbar (depending on configuration)
Accuracy (full scale) 0.1%
Type C2:
Pressure range: -1….1000bar (depending on configuration)
Resolution: 1mbar…100mbar (depending on configuration)
Accuracy (full scale) 0.05%
