Cylinder pressure sensors are essential components for monitoring and optimizing marine engines. They measure the pressure in the cylinder during the combustion process and provide real-time data that is used to fine-tune engine performance and increase efficiency. These sensors make it possible to precisely analyze the combustion processes, which helps to reduce fuel consumption, minimize emissions and extend the service life of the engine.
Cylinder pressure sensors are essential in modern shipping in order to meet the high demands of environmental standards and economic efficiency.
Cylinder pressure sensors that convince with their long-term accuracy

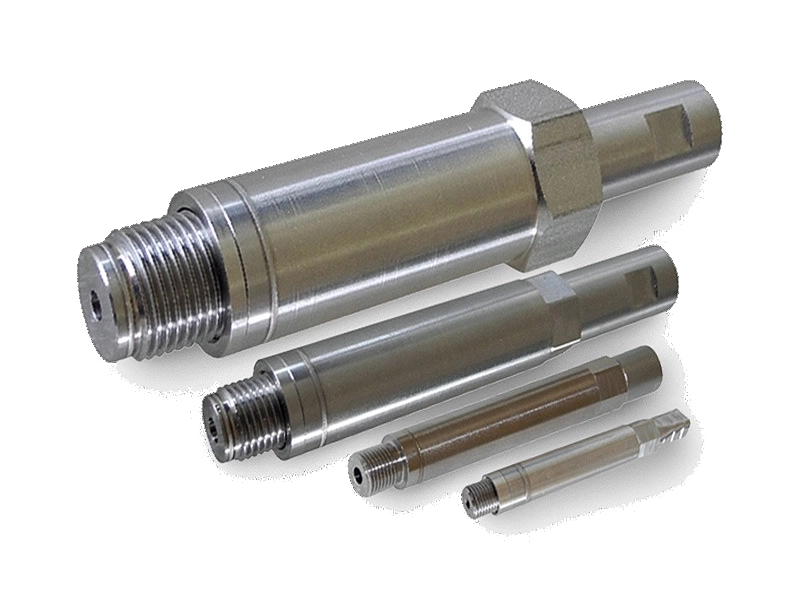

4-sensoren_IMES

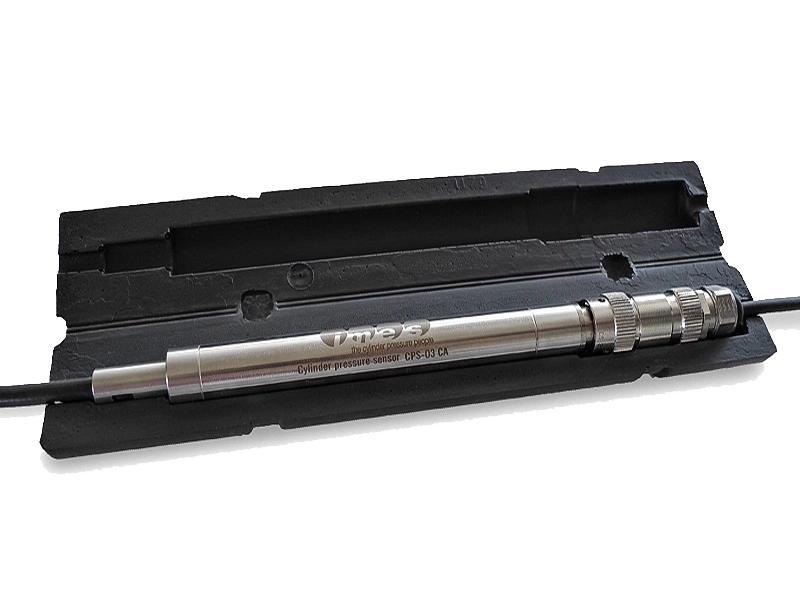

CPS_03_CA_IMES_1
pcs_IMES_1
sps_IMES_1
cps-03_IMES
htt-06_IMES
Description

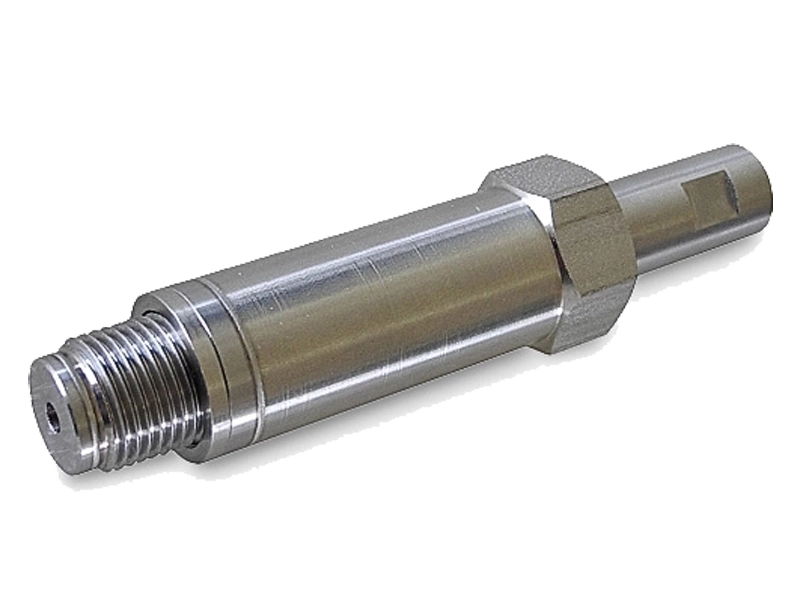

Modell HTT-06

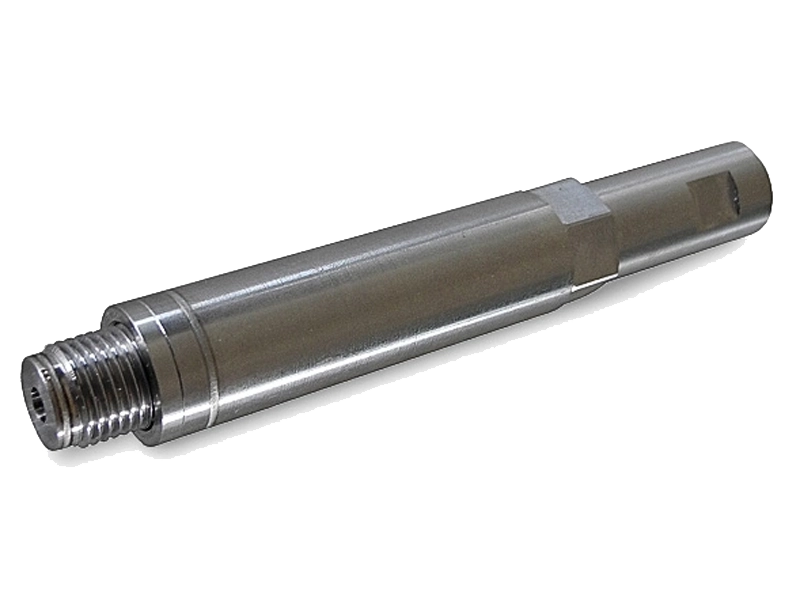

Modell CPS-03

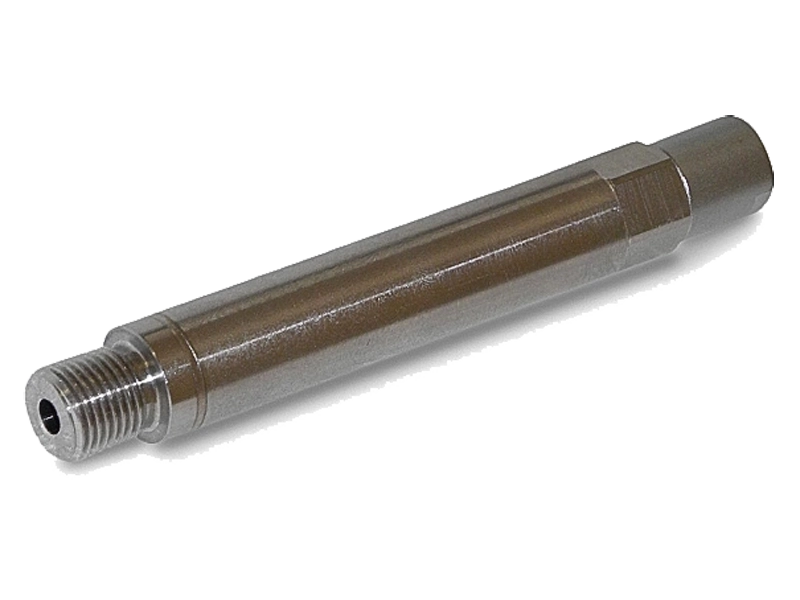

Modell SPS-01

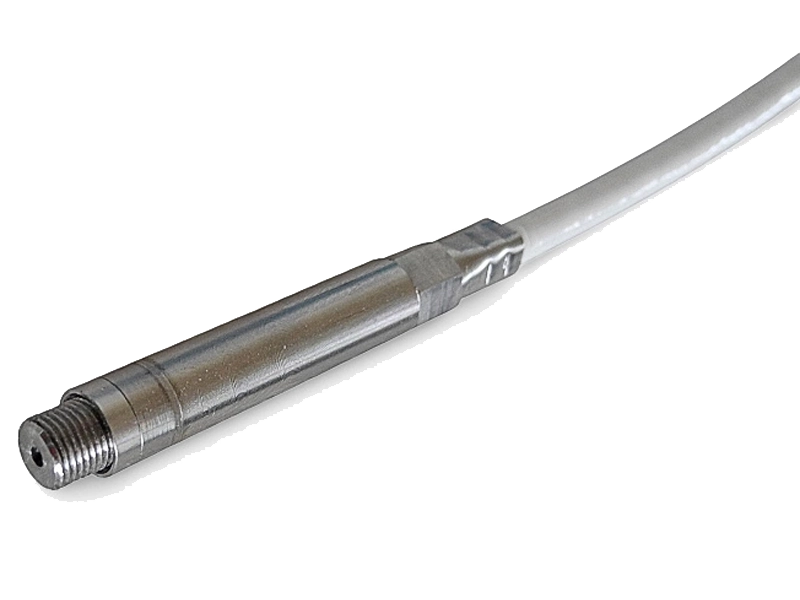

Modell PCS-01
Modell HTT-05
As one of the most fundamental variables in combustion engine technology, cylinder pressure provides unique insights into engine performance and condition.
Equipping each cylinder of a diesel, gas or dual-fuel engine with a cylinder pressure sensor provides an important input for electronic control, monitoring and diagnostic systems and a wealth of information for human analysis.
This series of combustion pressure sensors is characterized by its long-term accuracy with minimal signal drift over long periods of time, combined with its excellent cost efficiency.
Designed for at least 16,000 hours of operation, they enable the collection of highly accurate, processable data, either in periodic measurements or manual measurements.
Area of application: On-line combustion control for diesel and gas engines to increase engine performance
and optimized engine control. Extremely robust against high dp/dt and vibrations.
Protection class IP69.
Closed control loop for diesel, gas and dual-fuel engines.
Measuring range: 0…300 bar (others on request)
Static overpressure: 1200 bar and 1600 bar
Electrical connection: Plug DIN M12 / MIL-C-26482
Thread: M14 x 1.25
Certifications: DNV, Bureau Veritas, ABS, Class Nk, Lloyd’s Register, Korean Register, RINA, SGS
All sensors offer the following:
Signal range output 4-20mA option 0.5-4.5V
Frequency range: 2 or 10 kHz (others on request)
Accuracy error: < 1% full scale
Max. Temperature (measuring cell): 300°C (short term 1min 350°C
Thermal shock: 1500 RPM pmi = 10 bar < +/- 0.5 bar
Area of application: On-line combustion control for diesel and gas engines to increase engine performance
and optimized engine control. Extremely robust against high dp/dt and vibrations.
Protection class IP69.
Closed control loop for combustion engines.
Measuring range: 0…300 bar (others on request)
Static overpressure: 1200 bar and 1600 bar
Electrical connection: Plug DIN M12 / MIL-C-26482
Thread: M10 x 1
Certifications: DNV, Bureau Veritas, ABS, Class Nk, Lloyd’s Register, Korean Register, RINA
All sensors offer the following:
Signal range output 4-20mA option 0.5-4.5V
Frequency range: 2 or 10 kHz (others on request)
Accuracy error: < 1% full scale
Max. Temperature (measuring cell): 300°C (short term 1min 350°C
Thermal shock: 1500 RPM pmi = 10 bar < +/- 0.5 bar
Area of application: small pressure sensor for continuous measurement of combustion in diesel and gas engines.
engines.
Closed control loop for diesel, gas and dual-fuel engines.
Measuring range: 0…300 bar (others on request)
Static overpressure: 1200 bar and 1600 bar
Electrical connection: Plug DIN M12 / MIL-C-26482
Thread: M8 x 0.75
All sensors offer the following:
Signal range output 4-20mA option 0.5-4.5V
Frequency range: 2 or 10 kHz (others on request)
Accuracy error: < 1% full scale
Max. Temperature (measuring cell): 300°C (short term 1min 350°C
Thermal shock: 1500 RPM pmi = 10 bar < +/- 0.5 bar
Area of application: small pressure sensor for continuous measurement of combustion in diesel and gas
engines as well as for pre-chamber pressure.
Closed control loop for diesel, gas and dual-fuel engines.
Measuring range: 0…300 bar (others on request)
Static overpressure: 1200 bar and 1600 bar
Electrical connection: Plug DIN M12
Thread: M5x0.5
All sensors offer the following:
Signal range output 4-20mA option 0.5-4.5V
Frequency range: 2 or 10 kHz (others on request)
Accuracy error: < 1% full scale
Max. Temperature (measuring cell): 300°C (short term 1min 350°C
Thermal shock: 1500 RPM pmi = 10 bar < +/- 0.5 bar
Area of application: Compression pressure sensor for real-time pressure inputs from the compressor cylinders, e.g.
displayed horsepower, rod load, volumetric efficiencies.
Approved for hazardous area Class I, Division
1, Group A-D and Class I, Division
2, Group A-D.
Pressure measurements on compressors.
Measuring range: 0…300, 600, 1000, 1500, 3000, 5000 psi
Static overpressure: 3000, 4000, 10000 psi
Electrical connection: MIL-C-26482
Thread: 1/2″ NPT (others on request)
All sensors offer the following:
Signal range output 4-20mA option 0.5-4.5V
Frequency range: 2 or 10 kHz (others on request)
Accuracy error: < 1% full scale
Max. Temperature (measuring cell): 300°C (short term 1min 350°C
Thermal shock: 1500 RPM pmi = 10 bar < +/- 0.5 bar
