Accurate fuel and liquid measurement is critical for safe, efficient, and compliant maritime operations. The Coriolis mass flow meter delivers unparalleled measurement precision, enabling ships to monitor fuel consumption in real time, optimize engine performance, reduce operational costs, and meet strict environmental regulations. Unlike traditional flow meters, Coriolis technology measures mass directly, ensuring reliable results regardless of temperature, pressure, or fluid density changes – making it the ideal solution for demanding marine applications.
Coriolis mass flow meter for precise marine fuel measurement, real-time consumption monitoring, cost reduction, and regulatory compliance.
The Promass series from Endress and Hauser is a long-established, highly accurate sensor. Insensitive to changing and demanding process conditions, it is suitable for the widest range of applications. With its compact transmitter, it offers high flexibility in operation and system integration: access from one side, a remote display, and improved connectivity options. Heartbeat Technology enables measurement reliability and the extension of recalibration cycles.
The measuring principle works independently of physical medium properties such as viscosity and density. Highest measuring performance for liquids and gases under changing, demanding process conditions and Intelligent sensors with heartbeat technology.

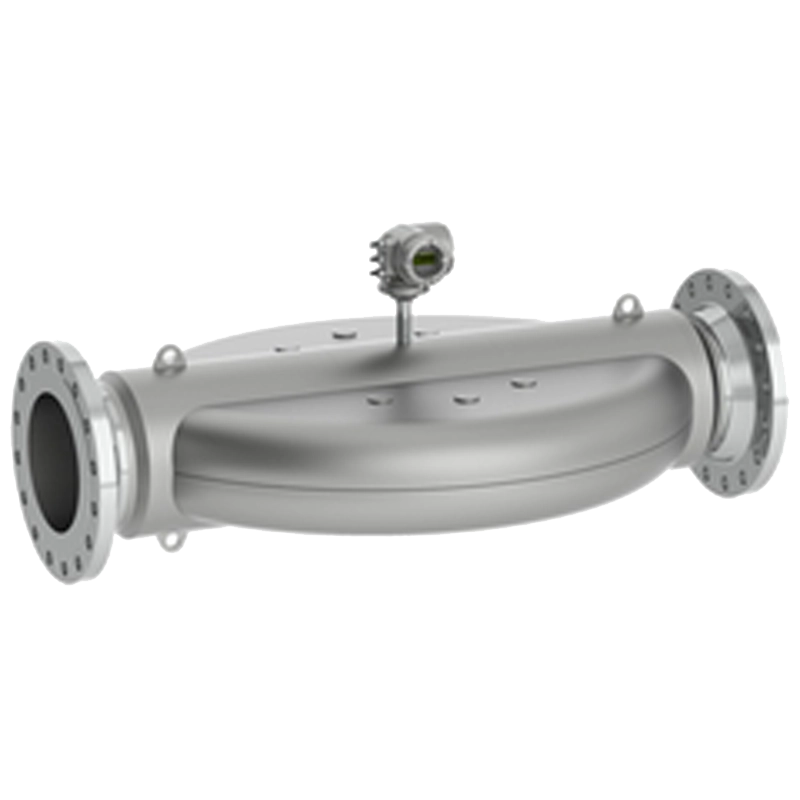

Proline Promass X 300 8X3B P01

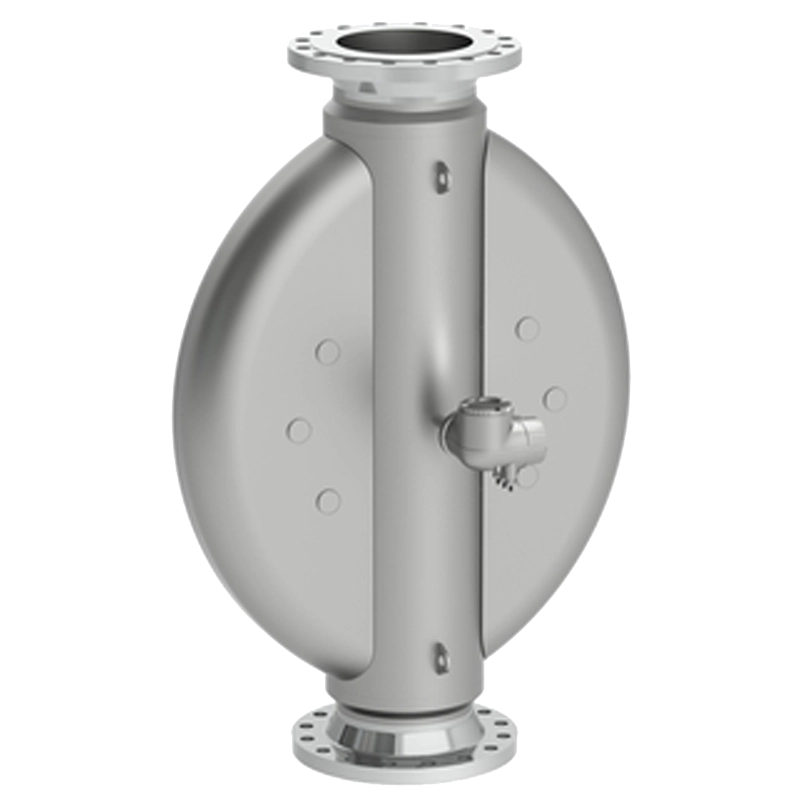

Proline Promass X 300 8X3B PP02

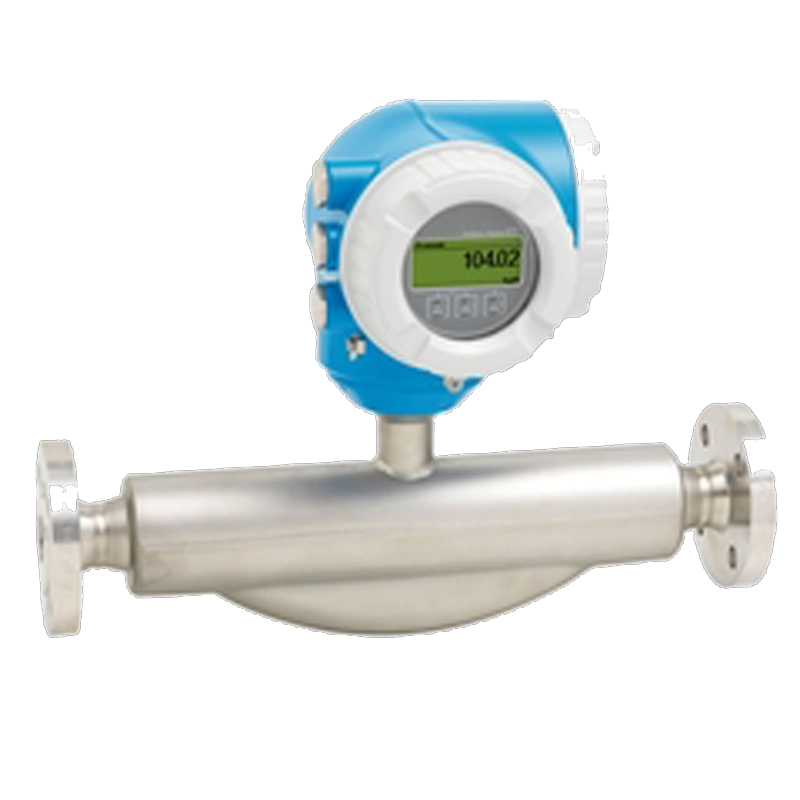

Promass_F 300 8F3B PP 01

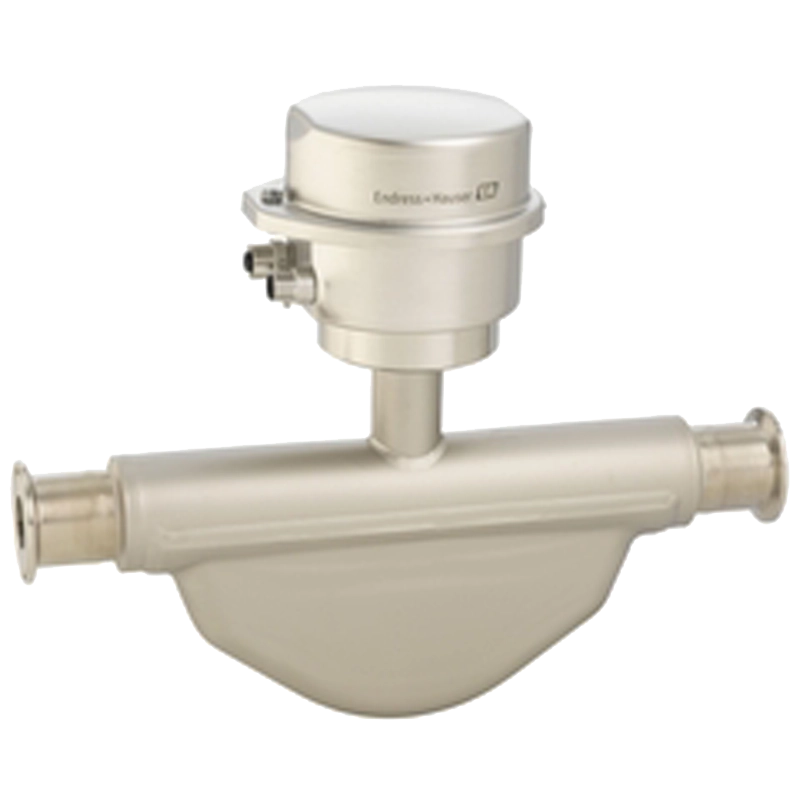

Proline Promass E 100 8E1C – PP01
Benefit
Specification
Product range
Great applicability for a wide variety of media, such as Fuels (HFO, MDO, MGO) or gases (LNG)
- Direct mass flow measurement
- Complexity of the available measurands, e.g. Mass, density and temperature
- Measurement independent of inlet and outlet sections, flows, density and temperature
- Mass flow: measurement error ±0.05 %
- No moving parts
- Large measuring range for a wide variety of applications
- Integrated verification – Heartbeat Technology
Max. Measuring deviation
Mass flow (liquid): ±0.10 % (standard), 0.05 % (option)
Volume flow (liquid): ±0,10 %
Mass flow (gas): ±0,25 %
Density (liquid): ±0.0005 g/cm³
Measuring range
0…2 200 000 kg/h (0…80 840 lb/min)
Medium temperature range
Standard: -50…+150 °C (-58…+302 °F)
Option: -50…+240 °C (-58…+464 °F)
High-temperature option: -50…+350 °C (-58…+662 °F)
Option: -196 to +150 °C (-320…+302 °F)
Max. Process pressure
PN 100, Class 600, 63K
Wetted materials
Measuring tube: 1.4539 (904L); 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022)
Connection: 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022); 1.4301 (F304)
Digital communication
HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, PROFINET, PROFINET over Ethernet-APL, Ethernet/IP, OPC-UA
Shipbuilding approvals and certificates
LR approval, DNV approval, ABS approval, BV approval, CCS approval
Proline Promass F 300: Measuring device with maximum accuracy, robustness and compact, access-optimized transmitter
Proline Promass E 300: Mid-range Coriolis flowmeter with compact, access-optimized transmitter
Proline Promass E 100: Mid-range Coriolis flowmeter with ultra-compact transmitter
Proline Promass X 300: Four-tube measuring device for maximum flow rates with compact, access-optimized transmitter
