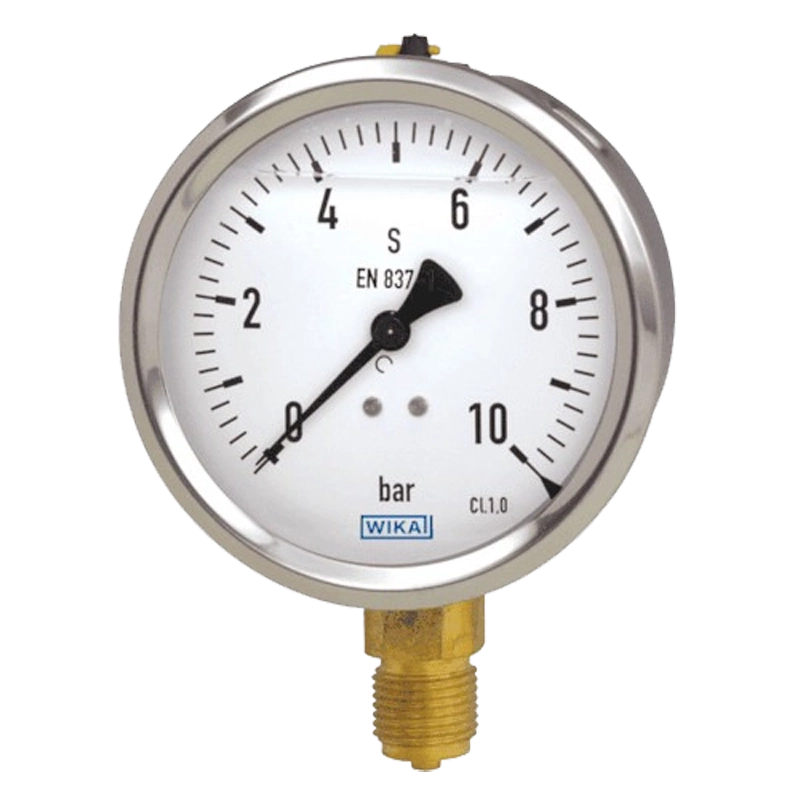

The liquid-filled Bourdon tube pressure gauge is equipped with a stainless steel housing and wetted parts made of copper alloy. It meets the requirements of the international industry standard EN 837-1 for Bourdon tube pressure gauges.
Description
Product range
The liquid filling in the housing efficiently dampens the pressure element and the movement. These devices are therefore particularly suitable for measuring points with high dynamic loads, such as rapid load changes or vibrations.
The housings of the 213.53 liquid-filled measuring device are available in nominal widths of 50, 63 and 100 mm and comply with protection class IP65. With an accuracy of up to class 1.0, this pressure gauge is suitable for a wide range of industrial applications.
For installation in control panels, the pressure gauge can be equipped with a process connection on the rear, a mounting flange or a triangular orifice plate and a mounting bracket.
| Scale | -1…1.000 bar |
| Nominal size | 50, 63, 100 |
| Accuracy class | 1.6 |
| Average temperature | Maximal 60°C. |
| Gehäuse | Stainless steel |
